Luna Ultra: Hardware Specifications

Applicable Models: Luna Ultra

Parameter Type	Item

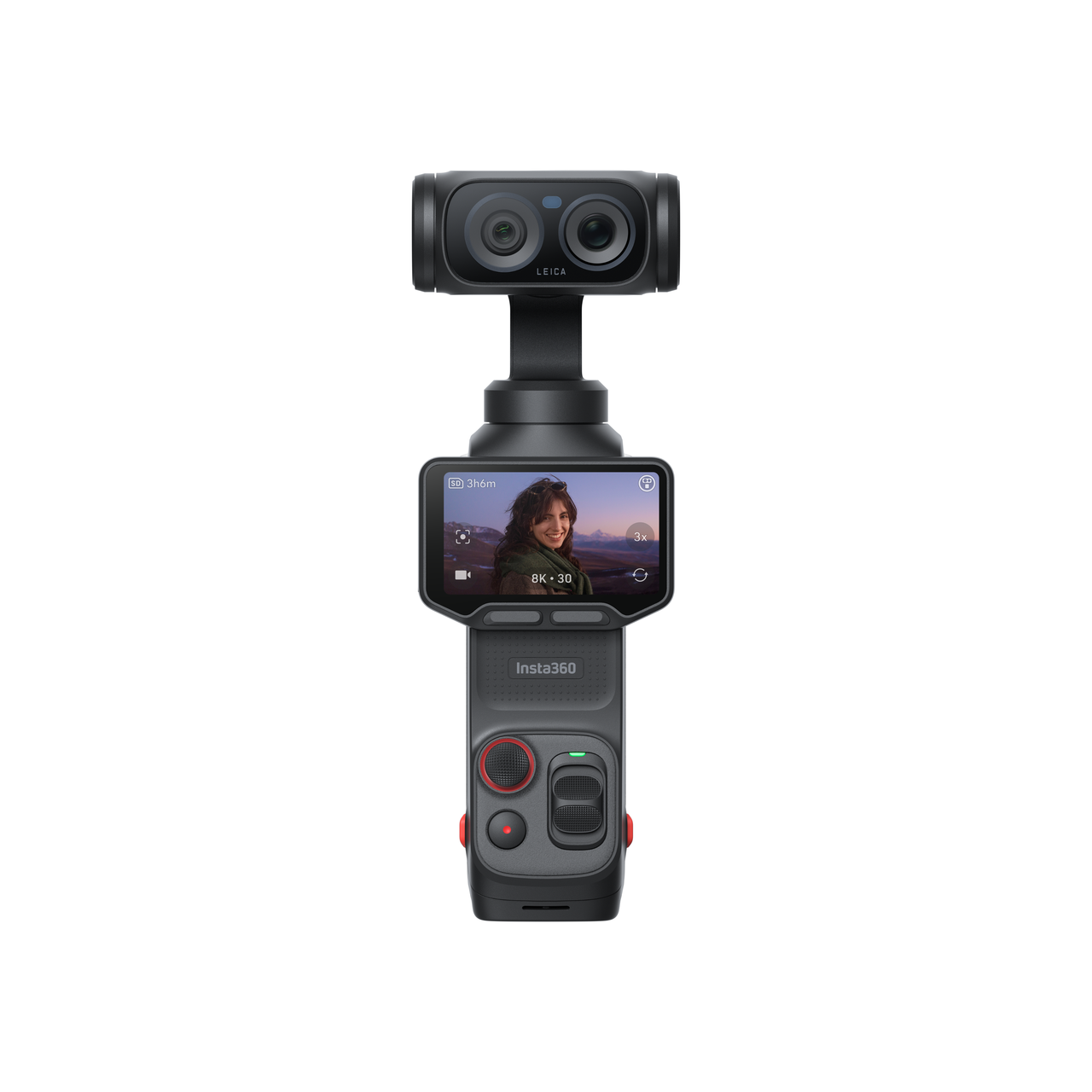

Luna Series	Product Name	Insta360 Luna Ultra
Release Information	Release Date	June 10, 2026
Hardware	Color	Cosmic Black and Stellar White
	Camera Dimensions (W × H × D)	2.06 × 6.69 × 1.52 in (52.4×169.9×38.5mm)
	Camera Weight	Cosmic Black: 8.22oz (233g), Stellar White: 8.29oz (235g)  *Due to manufacturing variations, product weight may have a reasonable tolerance, which is normal.
	Touchscreen	Size: 2.0in Screen type: OLED Resolution: 318×564 pixels Brightness: 1000 nits *Peak brightness: When exposed to strong light, the screen brightness can increase to 1000 nits, ensuring clear visibility outdoors.
	Internal Storage	47GB
	USB Transfer Protocol	Type-C USB 3.0
	Number of Microphones	4 (3 on the main unit and 1 on the top of the Detachable Touchscreen Remote)
	Sensor Size	Main lens: 1-inch Telephoto lens: 1/1.3-inch
	Lens Aperture *Variable aperture not supported	Main lens: F1.8 Telephoto lens: F2.0
	35mm Equivalent Focal Length	Main lens: 0.79in (20mm) Telephoto lens: 2.36 (60mm)
	Minimum Focusing Distance	Main lens: 3.54in (9cm) Telephoto lens: 5.91in (15cm)
Focal Length	Zoom Focal Length	Photo Mode: Supports 1x to 12x zoom Video/PureVideo Mode: Supports 1x to 12x zoom Pano Mode (360): Only supports 1x zoom Pano Mode (200MP): Only supports 3x zoom
Gimbal	Controllable Rotation Range	Pan: -57° to 235° Pitch: -57° to 120° Roll: -50° to 50°
	Mechanical Rotation Range	Pan: -63° to 240° Pitch: -98° to 180° Roll: -63° to 220°
	Maximum Control Speed	210.0°/s
	Jitter Suppression	±0.005°
Battery/Charging	Battery Capacity	Main unit: 1550mAh Detachable Touchscreen Remote: 210mAh
	Charging Time	About 23 minutes to 80% (15V/3A) About 38 minutes to 100% (15V/3A) *The charging times above are measured in a laboratory environment at 77°F (25°C) with a 30W USB-C charger supporting PD3.0 PPS protocol and with the camera powered off. Actual charging times may vary under different conditions.
	Battery Life	240 minutes *Measured at 77°F (25°C) in a laboratory environment while recording standard videos at 1080p@24fps, with the screen off and Wi-Fi off. Actual battery life may vary under different conditions.
	Fast Charging	Supported
Temperature/Waterproof/Dustproof	Operating Temperature	32°F to 104°F (0°C to 40°C)
	Waterproof/Dustproof Performance	Not dustproof, waterproof, or splashproof. Avoid exposure to water, sand, dust, etc. during use.
Wi-Fi/Bluetooth	Wi-Fi Protocol	Main unit: Wi-Fi 6.0 802.11 a/b/g/n/ac/ax Detachable Touchscreen Remote: Wi-Fi 4.0 802.11 b/g/n
	Bluetooth Protocol	BR / EDR / BLE
Application Scenarios	Recommended Application Scenarios	8K Leica flagship dual-lens gimbal camera targeting lifestyle recorders and professional creators. Luna Ultra cameras feature ultra-level imaging capabilities, lightweight and user-friendly design, and comprehensive and convenient post-production workflows, making it a professional creation tool comparable to a mirrorless camera—easy to use and ready to shoot anytime.
